Rail Stretcher
Manifold designed for a rail stretcher. with color coded handles to allow easy identification of function.
Rail Stretcher
Manifold installed ready for service. Color handles correspond to color coded axis

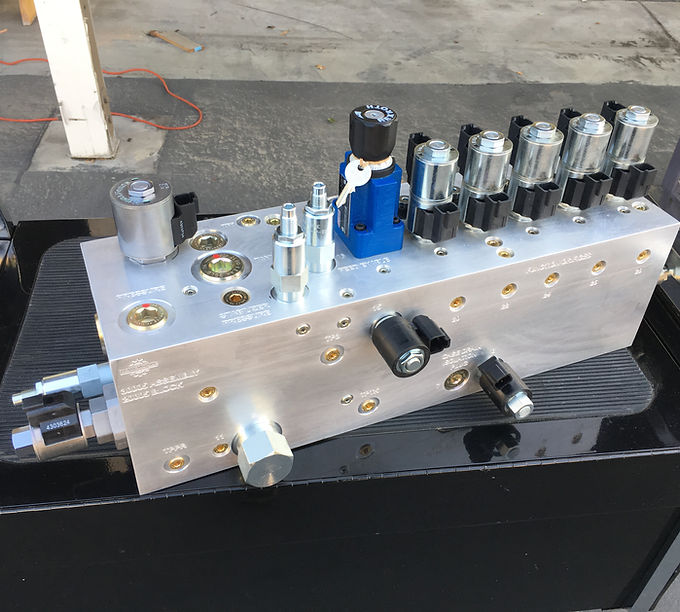

Rail Saw Manifold
Manifold designed and manufactured for a custom rail saw.
Rail Saw Manifold
Rail saw manifold installed and wired for service
Automated Rail Saw Manifold
Automated rail saw wired and ready for installation
Rail Saw Electronic Controls
Custom designed and programmed operator controls
Rail Grinder - BEFORE
Existing rail grinder with externally plumbed components
​
Rail Grinder - AFTER
Manifold designed to eliminated external plumbing.
​
Rail Grinder - BEFORE
Rail grinder with externally plumbed components.
Rail Grinder - AFTER
Manifold designed to eliminate externally plumbed valves.
Belt Tensioner - 6000 Pound Manifold
Belt tensioning manifold for half mile long conveyor belt.
Belt Tensioner - 6000 Pound Manifold
Belt tensioning manifold for half mile long conveyor belt.

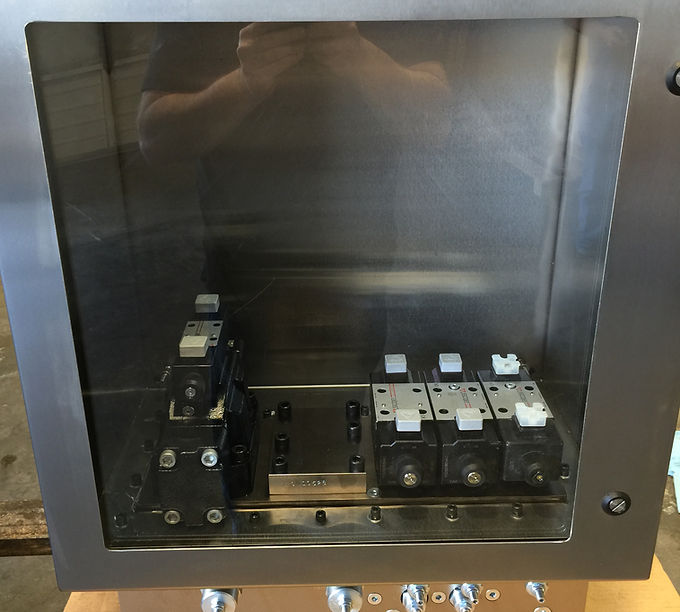

Steel Mill Manifold with Stainless Enclosure
Manifold project with environmental protection enclosure.
Steel Mill Manifold
Manifold with electroless nickel plating

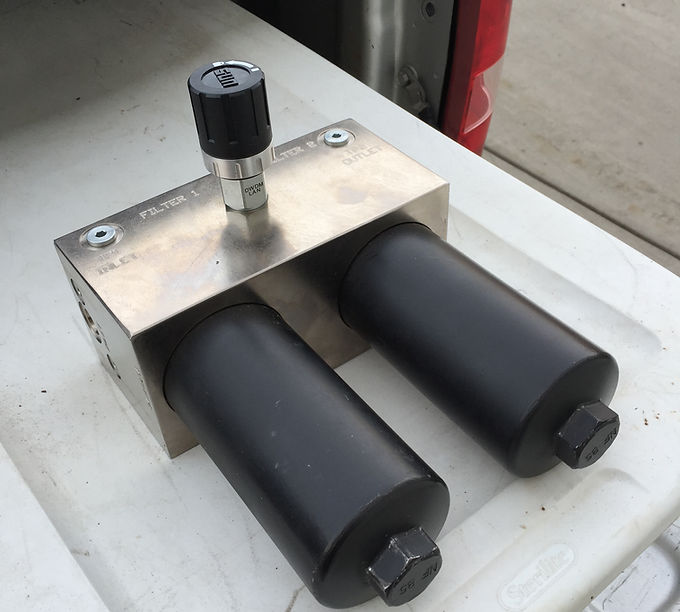

Servo Valve Duplex Filtration Manifold
Manifold Filter combination to protect servo valve
Servo Valve Duplex Filtration Manifold
Manual Switch over Duplex Filter.
Rail Saw Manifold
Rail saw function manifold
Hydraulic Broom
Broom manifold wo operate a hydraulically operated Broom.
Size Reduction Project
Manifold designed with integrated fittings to reduce size, Weight and potential leak points.
Concrete Saw Manifold Size Reduction
Manifold designed to reduce weight on a concrete saw.
Jurassic Park The Ride T-Rex Manifold
Manifold designed for the "Jurassic Park the Ride" to operate the T-Rex at the end of the ride
Accumulator Isolation Manifold
Manifold designed to isolate and dump an hydraulic accumulator
.
Steel Mill Servo Manifold
Servo Prop Manifold for Saw Mill application.
Oil and Gas Manifold with Safety Valve
Servo Prop Manifold with Safety Valve for drill rig application.
Air Caster Manifold
Manifold to operate an Air Caster.
Air Caster Manifold
Manifold to operate an Air Caster.
